Self-drilling screw for hard wood MDF

Countersunk MDF screw designed to prevent splitting in MDF without pre-drilling

Self-drilling screw for MDF | MDF screws

Product overview

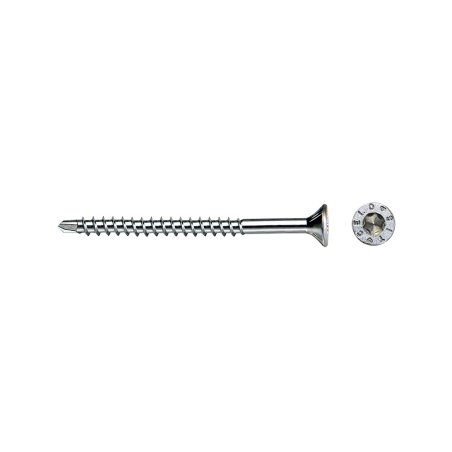

CELO self-drilling screw with special thread for MDF wood. It has been designed with a shorter bit to reduce splitting and bulging of the MDF material when screwing close to the edge or into the end grain.

The lower the density of the MDF (medium density fiberboard), the greater the chance that screws will not hold well without a special design. We know about screws and fixings and because not all screws perform equally in MDF, we manufacture MDF screws that perform optimally into this material.

Made of high tenacity steel zinc coating and a SIT recess and narrow countersunk head with milling ribs to pull easily into the material. Its special self-drilling point with precision placement allows screwing in without pre-drilling. The partial thread firms tightening of the upper wood layer.

SIT recess secures the best screw stick fit, bit grip, no cam-out effect and optimal force transmission.

Download documents

List of references

Filters

Head height [mm]

Head diameter [mm]

Thread length [mm]

Reference

93550MDF

9440MDF

9445MDF

9450MDF

9460MDF

Diameter [mm]

3.5

Length [mm]

Head height [mm]

2.4

2.5

Head diameter [mm]

Thread length [mm]

Recess type

SIT/TX 20

Screw material

Steel

Packaging units

500

250

Packaging type.

Box

5 / 5 references

Applications

Wood doors
Wood houses
Wood frames
Wood assemblies
Wood porch
Wood slats

Further specifications

Key features:

Reduces splitting and bulging of MDF material when screwing close to edges or into end grain

Prevents wood cracking even with the thinnest slats
SIT drill bit included in the box

Base materials

Wood type MDF (Medium Density Fibre)
